#include <pdfix.h>

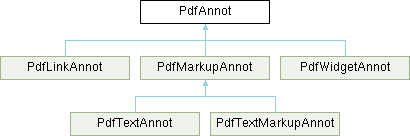

Inheritance diagram for PdfAnnot:

Public Member Functions
virtual PdfAnnotSubtype	GetSubtype () const =0
	Gets an annotation's subtype. More...

virtual PdfAnnotFlags	GetFlags () const =0
	Gets an annotation's flags. More...

virtual bool	SetFlags (PdfAnnotFlags flags)=0
	Sets an annotation's flags. More...

virtual void	GetAppearance (PdfAnnotAppearance *appearance)=0
	Gets an annotation's appearance. More...

virtual PdsStream *	GetAppearanceXObject (PdfAnnotAppearanceMode mode)=0
	Gets an annotation's appearance stream. More...

virtual bool	SetAppearanceFromXObject (PdsStream *xobj, PdfAnnotAppearanceMode mode)=0
	Set an annotation's appearance from an XObject. More...

virtual bool	RefreshAppearance ()=0
	Regenerates the appearance stream for the annotation. More...

virtual void	GetBBox (PdfRect *bbox) const =0
	Gets the annotation bounding box. More...

virtual bool	PointInAnnot (const PdfPoint *point) const =0

virtual bool	RectInAnnot (const PdfRect *rect) const =0

virtual PdsObject *	GetStructObject (bool struct_parent)=0

virtual PdsDictionary *	GetObject ()=0
	Gets the annotation object dictionary. More...

virtual void	NotifyWillChange (const wchar_t *key)=0

virtual void	NotifyDidChange (const wchar_t *key, int err)=0

virtual bool	IsValid () const =0

virtual bool	IsMarkup () const =0
	Tests whether an annotation is markup. More...

virtual bool	CanCopy ()=0

virtual bool	CanPaste (PdfPage dest_page, const PdfPoint center, void *data)=0

virtual void *	Copy ()=0
	Copies annotation object data to a clipboard structure, from which it can be pasted. More...

virtual PdfAnnot *	Paste (PdfPage dest_page, PdfPoint center, void *data)=0

virtual void	DestroyClipboardData (void *data)=0

virtual int	GetStateFlags () const =0
	Get the annotation state flags. More...

virtual bool	SetStateFlags (PdfStateFlags flags)=0
	Set the annotation state flags. More...

virtual PdsDictionary *	GetPageObject ()=0
	Get the annotation page object. More...

Detailed Description

PdfAnnot class.

An annotation associates an object such as a note, sound, or movie with a location on a page of a PDF document, or provides a way to interact with the user by means of the mouse and keyboard.

Member Function Documentation

◆ CanCopy()

virtual bool PdfAnnot::CanCopy ( )

pure virtual

Tests whether the data from an annotation on a given page can be copied to a clipboard for pasting. This depends on whether there is a PdfAnnotHandler with copy and paste support for the annotation, and whether copying is allowed by document permissions.

Returns: true if if the annotation can be copied, false otherwise.

◆ CanPaste()

virtual bool PdfAnnot::CanPaste	(	PdfPage *	dest_page,
		const PdfPoint *	center,
		void *	data
	)

pure virtual

Tests whether data from an annotation that has been copied to a clipboard can be pasted to a location on a page. Pasting can be disallowed by document permissions, or because the annotation cannot be accurately reproduced in the destination document.

Parameters

dest_page	The page to which the annotation would be pasted.
center	The location for the center of the annotation on the destination page.
data	The clipboard data that will be pasted to the page.

Returns: true if the annotation data can be pasted, false otherwise.

◆ Copy()

virtual void * PdfAnnot::Copy ( )

pure virtual

Copies annotation object data to a clipboard structure, from which it can be pasted.

Returns: the annotation clipboard data.

◆ DestroyClipboardData()

virtual void PdfAnnot::DestroyClipboardData ( void * data )

pure virtual

Destroys data that has been copied from an annotation object into a clipboard. Use this method after successfully pasting the data to a new document.

Parameters

dest_page	The page to which the annotation is pasted.
center	The location for the center of the annotation on the destination page.

Returns: A newly created annotation object associated with the specified document, containing the same data as the copied annotation.

◆ GetAppearance()

virtual void PdfAnnot::GetAppearance ( PdfAnnotAppearance * appearance )

pure virtual

Gets an annotation's appearance.

Parameters

appearance (filled by method) Pointer to a PdfAnnotAppearance structure.

◆ GetAppearanceXObject()

virtual PdsStream * PdfAnnot::GetAppearanceXObject ( PdfAnnotAppearanceMode mode )

pure virtual

Gets an annotation's appearance stream.

Parameters

mode	The apearance mode.

Returns: PdsStream object corresponding to the appearance stream.

◆ GetBBox()

virtual void PdfAnnot::GetBBox ( PdfRect * bbox ) const

pure virtual

Gets the annotation bounding box.

Parameters

bbox	(Filled by the method) Pointer to PdfRect structure to fill.

◆ GetFlags()

virtual PdfAnnotFlags PdfAnnot::GetFlags ( ) const

pure virtual

Gets an annotation's flags.

Returns: The flags, or 0 if the annotation does not have a flags key.

◆ GetObject()

virtual PdsDictionary * PdfAnnot::GetObject ( )

pure virtual

Gets the annotation object dictionary.

Returns: an annotation dictionary.

◆ GetPageObject()

virtual PdsDictionary * PdfAnnot::GetPageObject ( )

pure virtual

Get the annotation page object.

Returns: the page dictionary on which the annotation is or null if annotation is not on any page

◆ GetStateFlags()

virtual int PdfAnnot::GetStateFlags ( ) const

pure virtual

Get the annotation state flags.

Returns: the annotation state flags as PdfStateFlags.

◆ GetStructObject()

virtual PdsObject * PdfAnnot::GetStructObject ( bool struct_parent )

pure virtual

Gets the corresponding struct element object from the document structure tree. Iterates hierarchy of objects from the structure tree. If there is a reference to the current annotation, a structure element object with this reference is returned.

Parameters

struct_parent If set to true, ParentTree is used in finding the structure element to which the annotation belongs.

Returns: PdsObject object corresponding to the found structure element, otherwise nullptr.

See also: PdsStructTree::GetStructElementFromObject

◆ GetSubtype()

virtual PdfAnnotSubtype PdfAnnot::GetSubtype ( ) const

pure virtual

Gets an annotation's subtype.

Returns: The PdfAnnotSubtype corresponding to the annot's subtype.

◆ IsMarkup()

virtual bool PdfAnnot::IsMarkup ( ) const

pure virtual

Tests whether an annotation is markup.

Returns: true if an PdfAnnot is markup, false otherwise.

◆ IsValid()

virtual bool PdfAnnot::IsValid ( ) const

pure virtual

Tests whether an annotation is valid. This is intended only to ensure that the annotation has not been deleted, not to ensure that all necessary information is present and valid.

Returns: true if an PdfAnnot is a valid annotation object, false otherwise.

◆ NotifyDidChange()

virtual void PdfAnnot::NotifyDidChange	(	const wchar_t *	key,
		int	err
	)

pure virtual

Broadcasts a PDAnnotDidChange() notification. Clients must call this method after making any change to a custom annotation.

Parameters

key	The name of the key in the annotation's dictionary that is changing.
err	An error code to pass to any method registered to receive the PDAnnotDidChange() notification. Pass zero if the annotation was changed successfully. Pass a nonzero value if an error occurred while changing the annotation.

◆ NotifyWillChange()

virtual void PdfAnnot::NotifyWillChange ( const wchar_t * key )

pure virtual

Broadcasts a PDAnnotWillChange() notification. Clients must call this method before making any change to a custom annotation.

Parameters

key	The name of the key in the annotation's dictionary that is changing.

◆ Paste()

virtual PdfAnnot * PdfAnnot::Paste	(	PdfPage *	dest_page,
		PdfPoint *	center,
		void *	data
	)

pure virtual

Pastes copied annotation data from a clipboard structure to a new annotation object in a specified document. After successfully pasting the data, use PdfAnnot::DestroyClipboardData() to free the associated memory.

Parameters

dest_page	The page to which the annotation is pasted.
center	The location for the center of the annotation on the destination page. If center is null, the annotation will be moved to the center of the destination page's crop box.

Returns: A newly created annotation object associated with the specified document, containing the same data as the copied annotation.

◆ PointInAnnot()

virtual bool PdfAnnot::PointInAnnot ( const PdfPoint * point ) const

pure virtual

Tests whether the specified point is within an annotation. If an annotation consists of more quads, it tests each quad individually.

Parameters

point The point to test.

Returns: true if the point is within an annotation, false otherwise.

◆ RectInAnnot()

virtual bool PdfAnnot::RectInAnnot ( const PdfRect * rect ) const

pure virtual

Tests whether the specified rect is within an annotation. If an annotation consists of more quads, it tests each quad individually.

Parameters

rect	The rectangle to test.

Returns: true if the the whole rectangle is within an annotation, false otherwise.

◆ RefreshAppearance()

virtual bool PdfAnnot::RefreshAppearance ( )

pure virtual

Regenerates the appearance stream for the annotation.

Returns: true if the appearance was successfully regenerated, false otherwise

◆ SetAppearanceFromXObject()

virtual bool PdfAnnot::SetAppearanceFromXObject	(	PdsStream *	xobj,
		PdfAnnotAppearanceMode	mode
	)

pure virtual

Set an annotation's appearance from an XObject.

Parameters

xobj	Pointer to a XObject.

Returns: true if the appearance was successfully set, false otherwise

See also: PdfDoc::CreateXObjectFromImage, PdsContent::ToObject

◆ SetFlags()

virtual bool PdfAnnot::SetFlags ( PdfAnnotFlags flags )

pure virtual

Sets an annotation's flags.

Parameters

The	combination of PdfAnnotFlags flag keys.

◆ SetStateFlags()

virtual bool PdfAnnot::SetStateFlags ( PdfStateFlags flags )

pure virtual

Set the annotation state flags.

Parameters

flags the PdfStateFlags flags to be set

Returns: true if the annotation's state flags was set false otherwise
